home > Medium-sized Beer Brewing Equipment product details

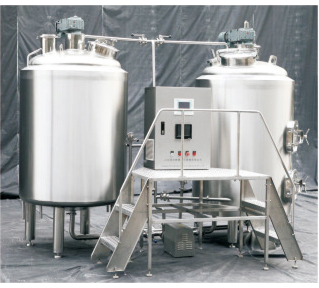

Two Vessels Mash System

Release date:[2017-01-07] Click rate:

Capacity:10/15/20/30BBL or customized

Two Vessels:Mash lauter tun/hot liquid tank & kettle whirlpool tun

Heating method: by steam, by electricity, by fire

The previous:Three Vessels Mash System
Next:Fermentation Tank

overview

parameter

Craft beer equipment including frame and installed on the frame of the ice water tank, saccharifying pot, fermentation tank and the cooling system; Products of ice water with ice water tank and water tank, water tank and water tank inside water treatment devices are installed between; Products within the ice water tank and between saccharifying pot, saccharifying tank and fermentation tank are connected by pipeline, pipe valves, flow meters are installed on and wort pump; Product saccharifying tank and fermentation tank installed heating mixer, institutions, temperature sensor and cooling units, products of fermentation tank and observation window on the mouth, the wine, pressure gauges, pressure regulating tables and try wine mouth; Products of ice cooling system including refrigeration units, pumps, the 3-way valve, flow meter, water table, installed on the saccharifying pot and cooling coil in the fermentation tank. Craft beer equipment is suitable for all kinds of craft beer formulation experiment and the development, cost is small, the function is all ready.
